Hammer Mill Manufacturer in Nigeria
Advanced Hammer Mill Solutions for Nigeria's Growing Industrial Sector
Kalas Industries Pvt. Ltd. is a trusted Hammer Mill Manufacturer in Nigeria, supplying high-performance grinding and crushing equipment to industries across Lagos, Abuja, Kano, Port Harcourt, Ibadan, Kaduna, Enugu, and other major industrial regions.Our Hammer Mills are engineered to efficiently process hard, fibrous, bulky, and irregular-shaped materials into coarse, medium, and fine powders. Built for demanding industrial environments, these machines deliver excellent grinding performance, higher production output, reduced power consumption, and long service life.From food processing and spice manufacturing to agriculture, chemicals, minerals, pharmaceuticals, fertilizers, and industrial manufacturing, Kalas Industries provides reliable Hammer Mill solutions tailored to Nigeria’s diverse processing industries.
About Hammer Mill
The Kalas Industries Hammer Crusher (Screen Type Equipment) is employed to disintegrate almost everything, from food products to limestone and spices.
Traditional disintegrators are technologically replaced by these modern and highly versatile machines, having total flexibility. Combination of different hammer styles, liner plates, sieve inserts and wear resistance technology offer almost unlimited possibilities of crushing lumpy, bulky, irregularly shaped, hard & fibrous materials into coarse to medium fine powders.
Higher Output Low Power Consumption Easier Operation. Traditional disintegrators are technologically replaced by this modern machine having total flexibility. Combination of different hammer styles, liner plates, sieve inserts and wear resistance technology offer almost unlimited possibilities of crushing bulky, irregularly shaped, hard fibrous materials into coarse to medium fine powder.
Hammer Mill is subjected to rigid inspection and actual grinding tests at our experimental station before it is delivered for dispatch.
Reliable Grinding Equipment for Agricultural & Industrial Applications
As a leading Hammer Mill Supplier in Nigeria, Kalas Industries manufactures robust grinding equipment designed for a wide range of industrial and agricultural applications.
Our Hammer Mills are widely used in:
Food Processing Plants
Spice Processing Units
Agricultural Processing Facilities
Feed Manufacturing Plants
Chemical Industries
Pharmaceutical Production Units
Fertilizer Manufacturing Plants
Mineral Processing Industries
These machines provide efficient grinding performance, consistent particle size reduction, and reliable operation.
Working Principle of Hammer Mill

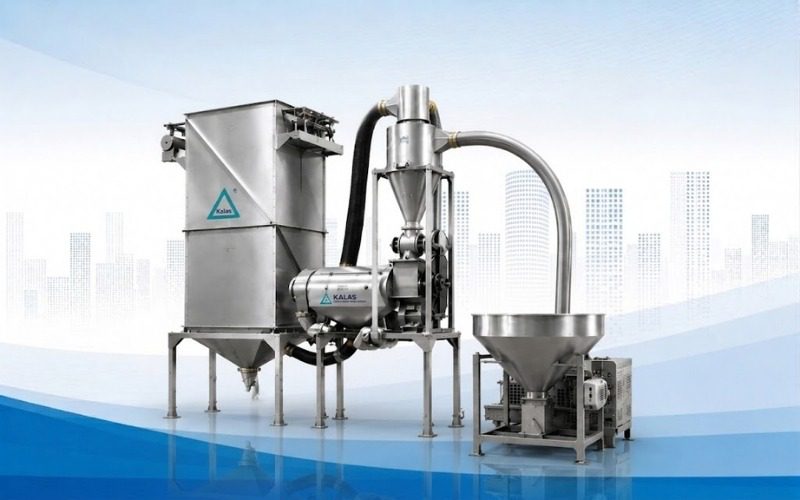

Hammer Mill with Air Blower & Cyclone Separator is economical unit designed for general all round work for time saving operation.
01
All types of products passes through a wide feed hopper into the grinding chamber. The swinging hammers, in the rotating hammer rotor, crush materials at the stationary liners before passes through a screen and rotating hammers.
02
The ground material is continuously sucked by a powerful air blower through screen and conveyed through the pipe line into the cyclone separator for bagging.
03
The air blower maintains constant atmospheric cool air flow in the mill chamber in order to obtain a cool product and continuously clean the screen, thus increasing the output of the ground material.
04
The particle size of the ground material can be varied by a large range of sieves with the desired opening.
05
The dust & ground material gets separated in the cyclone separator. Top of the cyclone air balloon is fitted. Air balloon separates clean air & dust. The dust gets collected in air balloon.
06
As soon as air balloon shakes, the dust drops into the cyclone separator and gets collected from the bottom of the cyclone separator.
07
Whole grinding operation is carried out in a cool atmospheric temperature which prevents oil, colour and flavour loss from products.

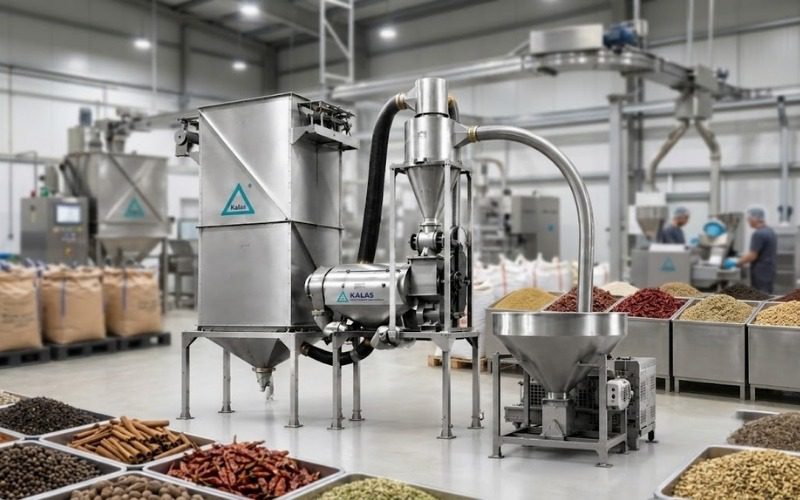

Components & Operating Parameters
Hammer Mill Components
- Feed Hopper
- Grinding Chamber
- Hammer Rotor Assembly
- Swinging Hammers
- Stationary Liners
- Screens
- Air Blower
- Cyclone Separator
- Product Collection Unit
- Electric Motor
- Control Panel
Operating Parameters
- Permissible Feed Size: Up to 100 mm
- Fineness Achievable: Up to 80 Mesh or 180 Microns
- Permissible Hardness: Up to 3 Moh's Scale
- Permissible Brittleness: Medium to High
- Permissible Moisture: Up to 3%
Technical Specifications & Production Capacities
| Model | Rotor Dia (mm) | Chamber Width | Machine RPM | Recommended Motor HP/RPM | Overall Dimensions (L × W × H) (mm) | Capacity (Kg/Hr Upto) |
|---|---|---|---|---|---|---|
| HM-MS6 | 1050 | 650 | 1200–1400 | 75/100/1440 | 1500 × 1200 × 2000 | 15000 |
| HM-MS5 | 900 | 550 | 1400–1600 | 60/75/1440 | 1300 × 1000 × 1650 | 10000 |
| HM-MS4 | 750 | 450 | 1800–2000 | 50/60/1440 | 1100 × 900 × 1350 | 7500 |
| HM-MS3 | 600 | 360 | 2000–2200 | 30/40/1440 | 900 × 800 × 1000 | 4500 |
| HM-MS2 | 450 | 300 | 2500–3000 | 25/30/2880 | 800 × 700 × 850 | 1200 |
| HM-MS1 | 450 | 220 | 3000–3500 | 15/20/2880 | 800 × 600 × 850 | 750 |
| HM-MS0 | 300 | 200 | 4000–4500 | 7.5/10/2880 | 550 × 400 × 650 | 300 |
Industrial Applications of Hammer Mills in Nigeria
صناعة معالجة الأغذية
- معالجة القمح
- تصنيع الدقيق
- طحن الأرز
- معالجة الحبوب
- إنتاج المكونات الغذائية
صناعة معالجة التوابل
- طحن الفلفل الحار
- معالجة الكركم
- إنتاج مسحوق الكزبرة
- طحن الكمون
- تصنيع خلطات التوابل
الصناعة الكيميائية
- مواد كيميائية مسحوقة
- الكيماويات الصناعية
- الراتنجات
- منتجات كيميائية متخصصة
صناعة الأدوية
- مساحيق الأعشاب
- المنتجات الغذائية الدوائية
- المكونات الدوائية
- المواد الخام الصيدلانية
صناعة التعدين
- حجر جيري
- كربونات الكالسيوم
- التالك
- الكاولين
- البنتونيت
- المعادن الصناعية
صناعة الأسمدة
- مساحيق الأسمدة
- مزيج العناصر الغذائية
- إضافات زراعية
Key Performance Features of Our Hammer Mill Machines
- Higher Output Capacity
- Low Power Consumption
- Easy Operation
- Heavy-Duty Construction
- Efficient Grinding Performance
- Uniform Particle Size Reduction
- Wear Resistant Components
- Continuous Production Capability
- Low Maintenance Requirements
- Long Operational Life
Benefits for Manufacturers in Nigeria
Increased Production Efficiency
Supports high-volume grinding operations with consistent output.
Consistent Product Quality
Produces uniform particle size for improved processing performance.
Reduced Operational Costs
Optimized design helps lower energy and maintenance expenses.
Multi-Industry Applications
Suitable for agriculture, food processing, chemicals, pharmaceuticals, minerals, and fertilizers.
Long-Term Reliability
Engineered for continuous industrial and agricultural processing operations.
Industries We Cater
Our Hammer Mills are widely used across:
صناعة الأغذية
صناعة التوابل
صناعة الأدوية
الصناعة الكيميائية
صناعة التعدين
صناعة الأسمدة
صناعة الدهانات
صناعة الأصباغ
صناعة المسابك
صناعة الأيورفيدا
1990 منذ عام
أكثر من ثلاثة عقود من الخبرة في تصنيع معدات الطحن والسحق.
حلول هندسية مخصصة
يتم تطوير الآلات وفقًا لمتطلبات الإنتاج وخصائص المواد.
معايير جودة عالمية
تُصنع باستخدام مواد عالية الجودة وإجراءات صارمة لمراقبة الجودة.
خبرة عالمية في التصدير
توريد مطاحن المطرقة إلى قطر، والإمارات، والمملكة العربية السعودية، وسلطنة عُمان، والبحرين، والكويت، وأفريقيا، والأسواق العالمية.
دعم فني متكامل
تقديم المساعدة المهنية بدءًا من التركيب والتشغيل وحتى خدمات ما بعد البيع.
الأسئلة الشائعة حول المطاحن المطرقة
ما هي مطحنة المطرقة؟
مطحنة المطرقة هي آلة طحن صناعية تُستخدم لتقليل حجم المواد من خلال الصدمات المتكررة الناتجة عن المطارق الدوارة.
ما هي الصناعات التي تستخدم مطاحن المطرقة في قطر؟
تُستخدم مطاحن المطرقة على نطاق واسع في صناعات تجهيز الأغذية، وتصنيع التوابل، والمواد الكيميائية، والصناعات الدوائية، ومعالجة المعادن، وإنتاج الأسمدة، والعديد من الصناعات التحويلية.
هل يمكن للآلة معالجة المواد الصلبة والليفية؟
نعم، صُممت مطحنة المطرقة لمعالجة المواد الصلبة والليفية والضخمة وغير المنتظمة الشكل بكفاءة عالية.
هل تقومون بتصدير مطاحن المطرقة إلى قطر؟
نعم، تقوم شركة كالاس للصناعات بتصدير مطاحن المطرقة وحلول الطحن المتكاملة إلى الدوحة وجميع أنحاء دولة قطر.
هل تبحث عن مُصنِّع لمطاحن المطرقة في قطر؟
تعاون مع شركة كالاس للصناعات الخاصة المحدودة للحصول على مطاحن مطرقة موثوقة وعالية الأداء، مصممة خصيصًا لتطبيقات الطحن والسحق والطحن الدقيق الصناعية.
تساعد حلول مطاحن المطرقة المتطورة التي نقدمها المصنّعين في قطر على زيادة الإنتاجية، وخفض تكاليف التشغيل، وتحقيق تقليل موحد لحجم الجسيمات بما يلبي مختلف التطبيقات الصناعية.
