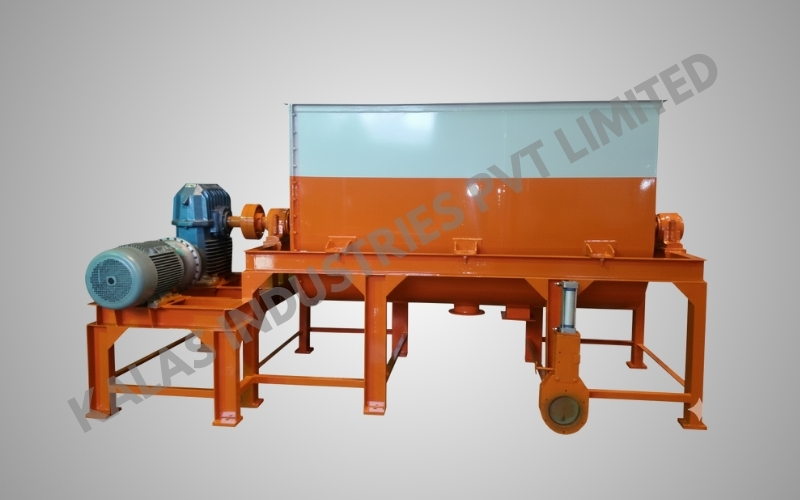

Ribbon Blender comprises of a U-shaped horizontal trough and a specially designed Double Helical Ribbon Agitator rotating within. The Ribbon Agitator consists of a set of inner and outer helical Ribbons. Generally, the outer ribbon flights displace the material from the end of the center while the inner flights move the material from the center to the ends.
This counter-current action results in homogenous blending. The ribbons rotate at approximately 70-100 meters per minute and move the material both radially and laterally to ensure thorough blends short cycle times. Ribbon Blenders are used for blends that are between 50 % and 100 % of the rated capacity. An alternate design is thepaddle agitator. The paddles are positioned to move the material in opposing lateral direction as well as radially. The paddle design is generally employed where friable material are being blended, and when batches as small as 15 % of the total capacity are going to be mixed in the blender.
The top weight on the motor shaft rotates in a plane close to the centre of the mass of assembly. Rotation of the top eccentric weights creates vibration in the horizontal plane which causes material to move across the screen cloth to periphery Increasing the top eccentric mass Increases the horizontal throw causing oversize material to discharge ata tasterrat The bottom eccentric weight rotates below the centre of vibrating, mass creating it on the screen giving Vibration in vertical & tangential planes, increasing the vertical component of motion which promotes turnover of material on the screen surface helping maximum quantity of undersize material to pass through the screen. The effective vertical motion helps in minimising blinding of screen by near size particles. The tangential component of motion is controlled by the angle of lead given to bottom weights with relation to top weight
- Available in working capacity of 5 liters to 25,000 liters
- Constructed from all grades of stainless steel, carbon steel, and special alloy steels
- Equipped with ribbon agitator for center discharge
- Designed for atmospheric operation
- Top cover provided based on the length of the blender
- Features centrally located flush bottom discharge valve
- Stuffing boxes with easily disassembled housings and pure Teflon gland packing
- Stainless steel surfaces polished to required standards; exterior non-SS parts coated with enamel paint
- Fitted with squirrel cage, three-phase induction motors (415 Volts, 50 Hz)
- Worm reduction gearbox
- Single speed drive mechanism
- Mounted on supports with adequate discharge clearance
- Wear-resistant liner plates for abrasive products
- Ribbon agitator with multiple discharge positions
- Manually or pneumatically operated Butterfly Valve, Slide Gate Valve, Diaphragm Valve, etc., for discharge
- Split design stuffing boxes, air-purging stuffing boxes, and mechanical seals
- Good Manufacturing Practice (GMP) compliant models
- Explosion-proof motors and variable speed drives with electrical control panel
- Spraying system for liquid injection
- Lump breakers for reducing solids or agglomerates in size
- Vacuum and pressure-resistant construction
- Jacket available for heating or cooling purposes
- Inspection and cleaning windows on the container and cover
- Cover openings and nozzles as per requirement
- Bakery premixes
- Bird seeds
- Cake mixes
- Instant breakfast cereals
- Carbon black
- Cleaning compounds
- Dried food products
- Dry flavors
- Engineered plastic resins
- Epoxy resins
- Eye shadow
- Face powders
- Fertilizer
- Fire retardants
- Gypsum
- Talcum powders
- Pharmaceuticals
- Pigments
- Plastic powders
- Polyethylene
- PVC compounding
- Spice blends
- Typically, these fans are installed downstream of dust collection equipment like Bag filters, ESPs, cyclone separators and scrubbers.The fans are based on German technology with volumetric flows upto 200000m3/hr. The pressure developed may be as high as 1000 mm wg.The fans for dry applications shall have impellers with backward curved or backward inclined blades.Fans for wet application like scrubber fans shall have specially designed impellers with straight blades.
- Process Fans: We offer high efficiency fans in robust construction for process applications such as dryers, grinding mills, kilns, coolers, boilers etc. Fans maybe provided with suitable drives like fixed or variable speed motors or belt driven arrangement.Temperature may vary from subzero to high temperature of 400 degrees C. Fans maybe designed for various process gases like inert gas, flue gases etc.
- Pneumatic conveying Fans and Blowers: The fans used for pneumatic conveying systems are required to have special characteristics to ensure stability of conveying process as the pressure drops are likely to vary with conveying loads and process variations. We have the expertise to design and supply fans to ensure smooth and trouble-free conveying of powders.
- Spark proof Fans: We offer fans in sparkproof construction for special applications involving explosive gases and powders.
